1)Product Specification
Type:B5-C
Product Features:
Promptly&precisly perform bending,notching,rake lipping,clearance lipping,front plane cutting and back plane cutting;
Direct calibration after bending,no need for additional edge truncation or grinding;
Fully automated bending to its true meaning,time and labor cost saving;
Perform the six function individually,simutanousal,or several of them.
|
Specification |
|
|
The precision after bending |
±0.05MM |
|
The planeness |
0.25MM |
|
The min head length of the bending |
1.8MM |
|
The min end length of the bending |
1.8MM |
|
The max bending angle |
90 degree |
|
The min radius for 90 degree angle |
0.5mm |
|
Material applied |
0.45MM/0.53MM/0.71MM/1.05MM |
|
The height of the blade |
8-30MM |
|
Power supply |
220/380V 50/60HZ |
|
Air pression |
0.6MPA |
|
Size |
2600*850*1500MM(L*W*H) |
|
Weight |
460KG |

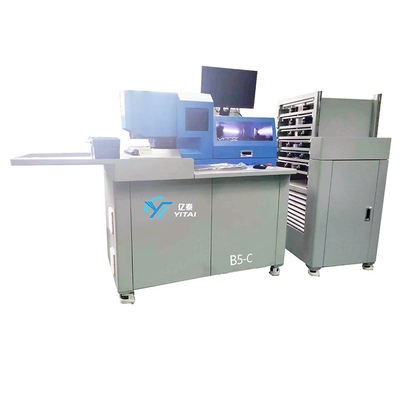

The picture for you reference
Grandcorp is an excellent Taiwan founded die making group-company. There are totally 23 subsidiaries for Grandcorp. It had engaged in die making industry for more than 20 years and now had customers from around the world and supplies the best quality goods to customers. You will be easy to find the rotary die board, flat die board, rotary die, flat die, auto-cutting die, precise cutting die for electronic, die making machine and tools, packaging and printing material machine and tools. More information please see our website: http://grandcorp.en.alibaba.com
YITAI is the kunshan branch and is responsible for the group’s international trading.
Shipmeng terms:
DHL, UPS, EMS, TNT, Fedex, sea transportation are available
Trade terms:
EXW, FOB, CIF preferred
